RDK69$

Post subject: Need Help Grading Boards

Posted: Sat Jul 08, 2023 10:24 pm

Joined: Wed Oct 25, 2017 12:05 am
Posts: 16

Please grade these Boards. Thanks for your help!

Attachments:

File comment: Will all of these connectors be acceptable as long as they have gold plated pins?

CFF4C29F-DA70-4591-A353-D90299C2E60D.jpeg [ 2.07 MiB | Viewed 1605 times ]

73B9242A-3306-4A69-AE75-F8A450452ABB.jpeg [ 2.31 MiB | Viewed 1605 times ]

2661F8AD-5CA7-482E-B47D-AE1EA21A4786.jpeg [ 2.41 MiB | Viewed 1605 times ]

A2D4E2BD-4964-4834-BF56-6C8D7C797281.jpeg [ 2.28 MiB | Viewed 1605 times ]

A2F36A1E-8F3B-4DB5-996B-B8F3DF3F7F2D.jpeg [ 2.93 MiB | Viewed 1605 times ]

396851C8-69BC-4EC8-B8CE-B1F962F4392A.jpeg [ 2.74 MiB | Viewed 1605 times ]

84B2393A-5DEF-494E-92C1-BFD8C04212D1.jpeg [ 3.29 MiB | Viewed 1605 times ]

3300975A-DA70-49A5-ABF2-C11C82D9751D.jpeg [ 3.12 MiB | Viewed 1605 times ]

919F33CE-38C4-490D-B90E-FA2EF81F3215.jpeg [ 2.99 MiB | Viewed 1605 times ]

D4686097-8BE8-4941-B697-3B9201C1E356.jpeg [ 2.98 MiB | Viewed 1605 times ]

58591731-C198-46D6-954B-58D577B57B2A.jpeg [ 2.84 MiB | Viewed 1605 times ]

BA870BE5-F5FF-487E-9680-49233A3D98F7.jpeg [ 2.94 MiB | Viewed 1605 times ]

B9A8F403-32E0-4DF7-A264-FE5351504332.jpeg [ 2.13 MiB | Viewed 1605 times ]

A8539A8A-CFFC-48E9-82A3-05C6222A1ED2.jpeg [ 2 MiB | Viewed 1605 times ]

69C574D8-618D-42DD-A042-7F35EF8F3AE6.jpeg [ 2.27 MiB | Viewed 1605 times ]

282348BE-5333-4F90-A976-3A73014877D1.jpeg [ 2.31 MiB | Viewed 1605 times ]

Top

PickleJar

Post subject: Re: Need Help Grading Boards

Posted: Sun Jul 16, 2023 2:42 pm

Joined: Thu Feb 04, 2021 2:53 am
Posts: 395

Remove the brackets and separate the boards on all of them.

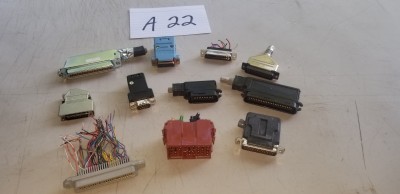

A22. Yes all connector ends

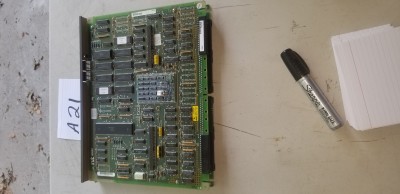

A21. Top board is high telecom. Can't see bottom

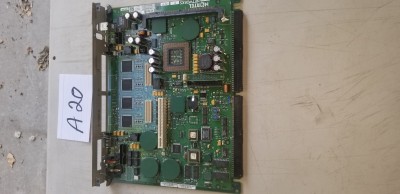

A20. Large socket motherboard

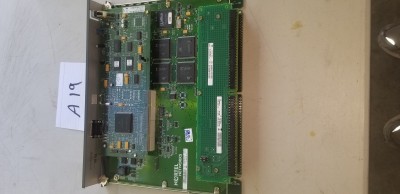

A19. Both high peripheral

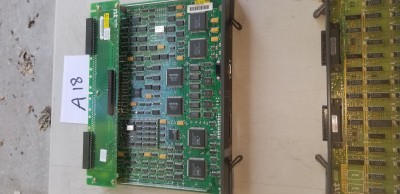

A18. High telecom

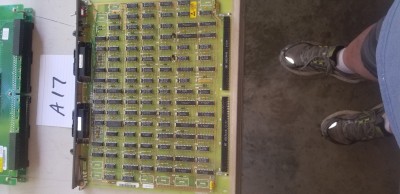

A17. High telecom
A16. Midgrade

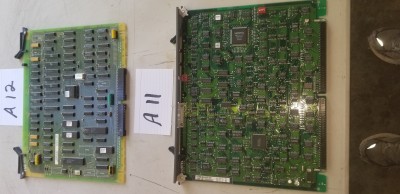

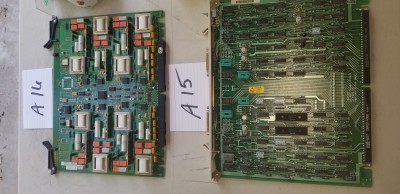

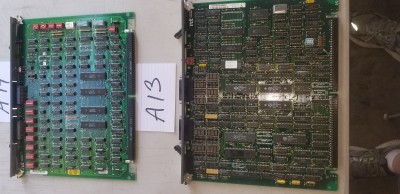

A15, A14, A13, A12, A11 High telecom

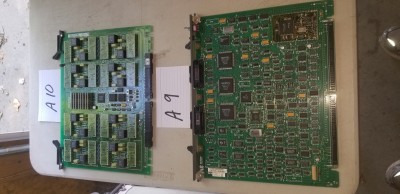

A10. Low peripheral

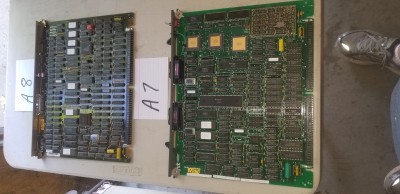

A9, A8 High telecom
A7. Gold cap chip board

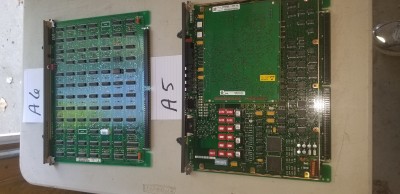

A6. High telecom
A5. Not sure, separate the boards

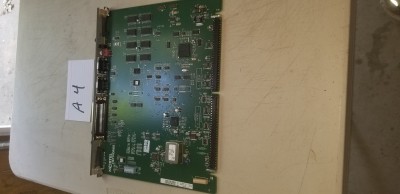

A4. High peripheral

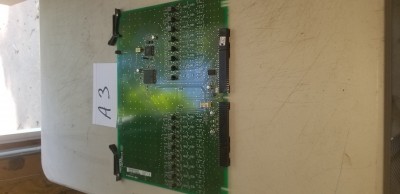

A3. Low peripheral

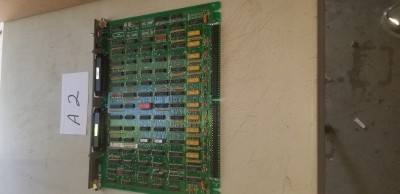

A2. High telecom

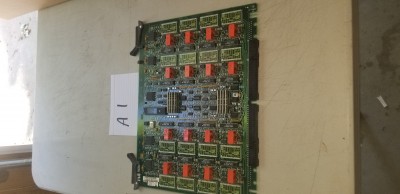

A1. High peripheral

Top

RDK69$

Post subject: Re: Need Help Grading Boards

Posted: Mon Jul 17, 2023 7:17 pm

Joined: Wed Oct 25, 2017 12:05 am
Posts: 16

Thank You. What is the best way to Remove Brackets without damaging the boards, They are riveted on.

Top

malphorian1973

Post subject: Re: Need Help Grading Boards

Posted: Mon Jul 24, 2023 9:23 am

Joined: Mon Apr 12, 2021 9:46 pm
Posts: 265

I am going to give you a couple of good pointers here. 1. Separate all of your boards. Take the screws out and separate them. 2. I use a Dremel with a cutoff wheel on it to remove those brackets (please use a mask while doing this). Cut about halfway through and then you can snap them off. 3. Don't post so many boards to one thread. There is lots of room here and it makes it easier on us to go through 5 smaller threads than it is to go through 1 really big thread. Thank you.
