So I found a couple intact of these different machines I've been scrapping down. I have multiple of all the boards from this system. Some are easy to place some not so much for a newbie. The two main boards, the smaller board with the two ports, the small board with 2 large chips and gold connectors on both sides, and the compact flash drives i could use some assistance on.
| Attachments: |

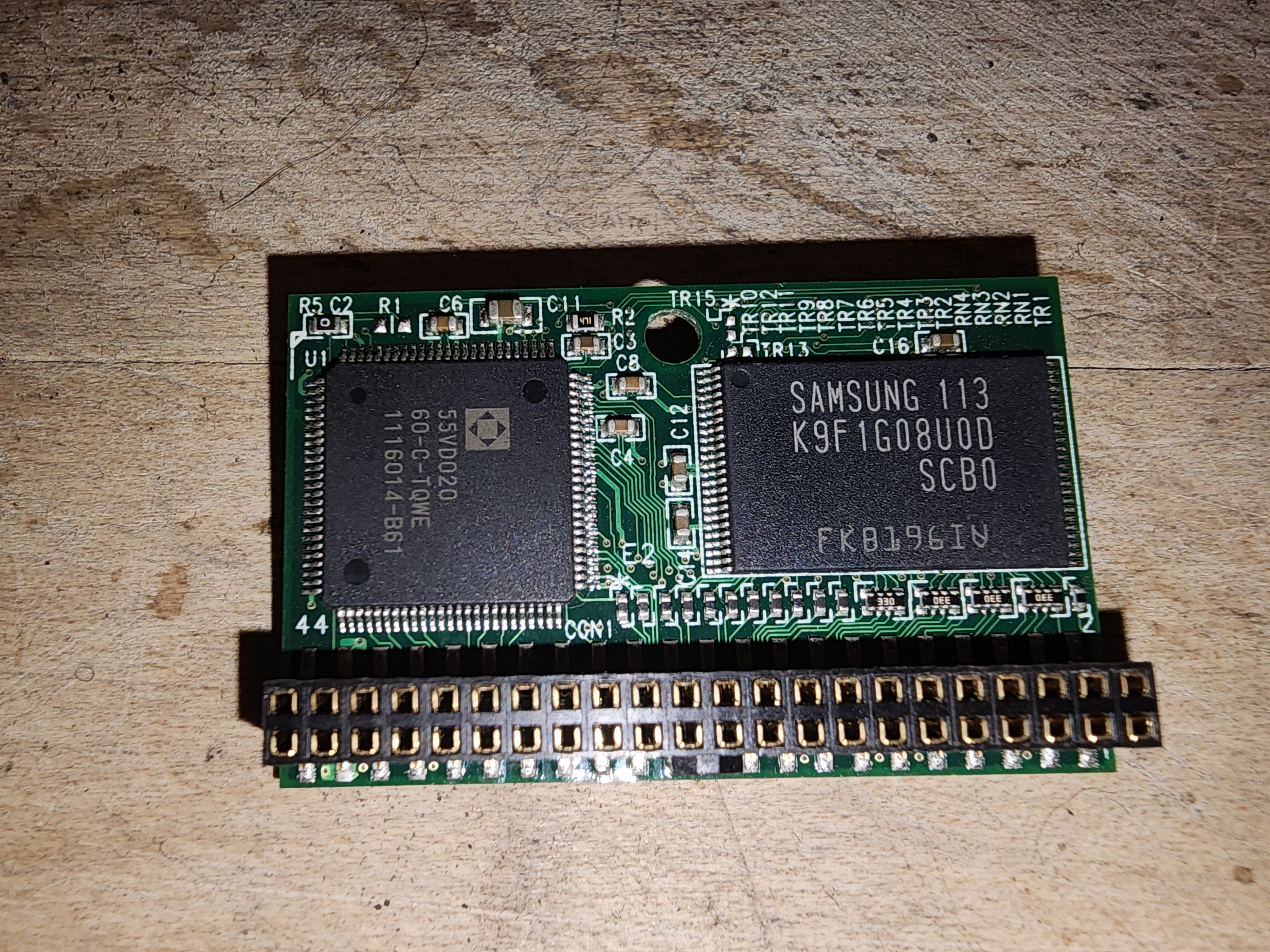

File comment: Small only some gold pins in the corners on back
20250722_024317.jpg [ 3.25 MiB | Viewed 1154 times ]
|

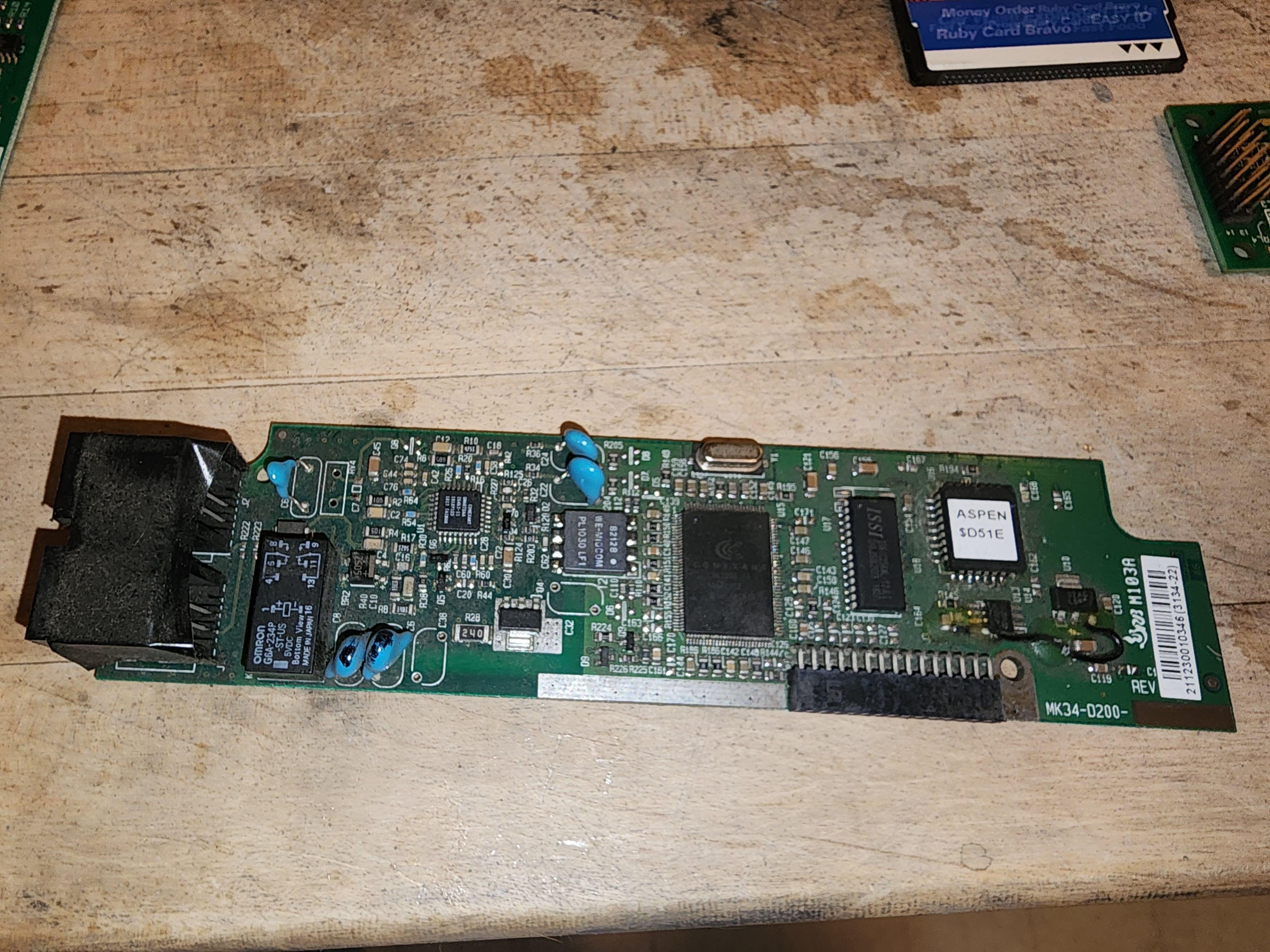

File comment: Smaller with 2 ports blank back
20250722_024302.jpg [ 2.47 MiB | Viewed 1154 times ]
|
File comment: Blue board back
20250722_024207.jpg [ 3.37 MiB | Viewed 1154 times ]
|

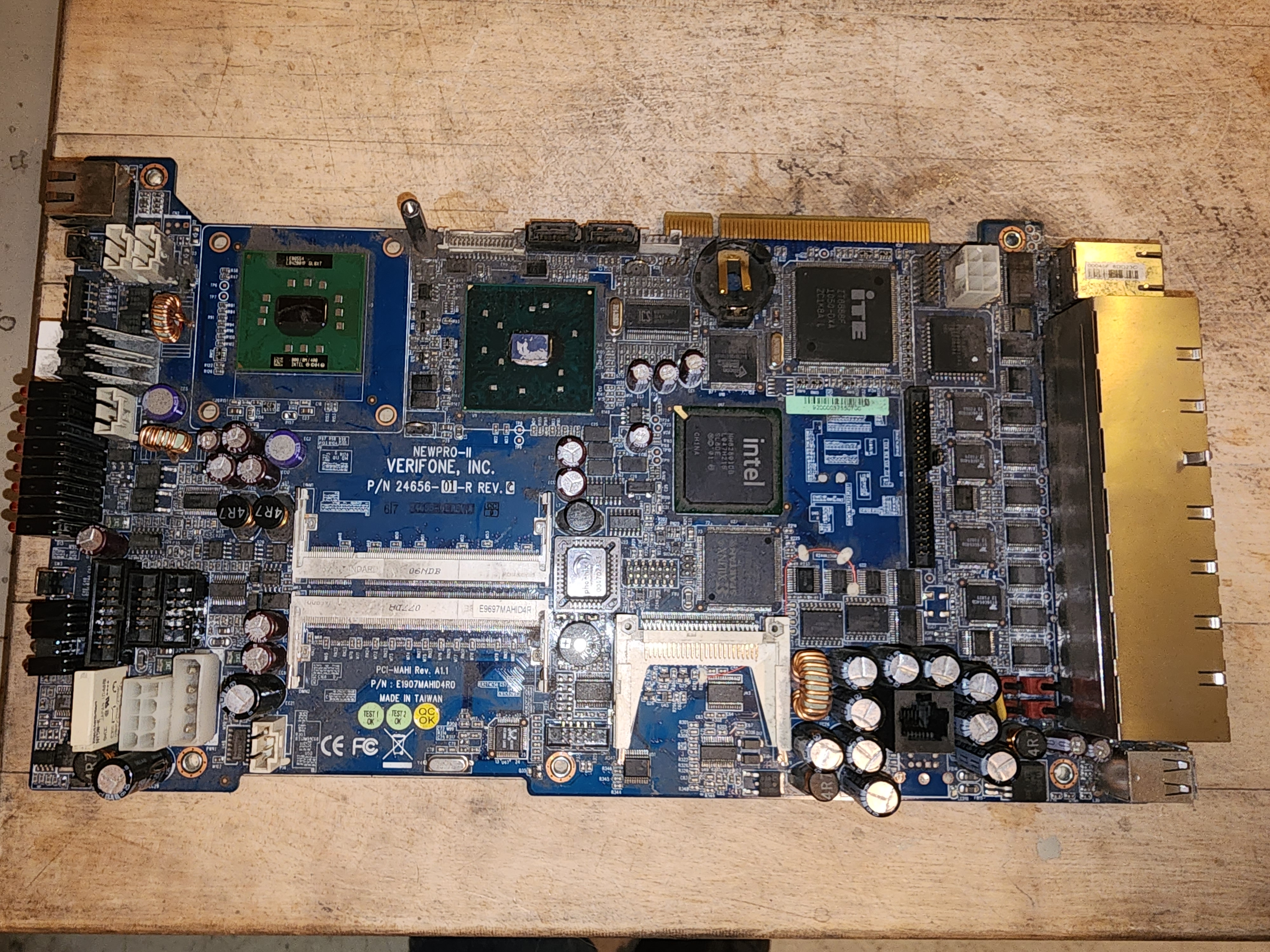

File comment: Blue board front. Im completely lost on this one. So much going on, so many ports,
20250722_024146.jpg [ 3.18 MiB | Viewed 1154 times ]
|

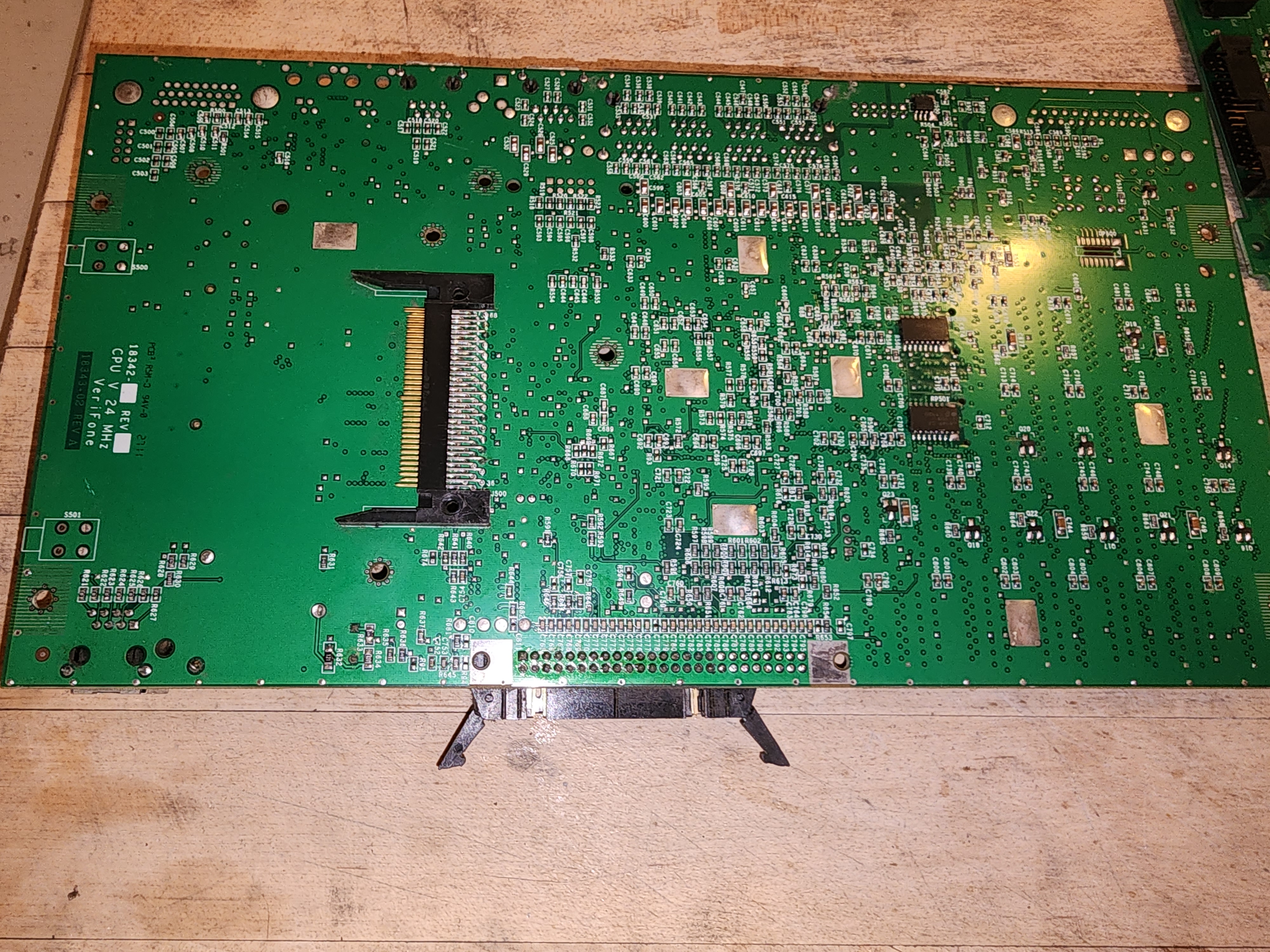

File comment: Green board back
20250722_024119.jpg [ 3.2 MiB | Viewed 1154 times ]
|

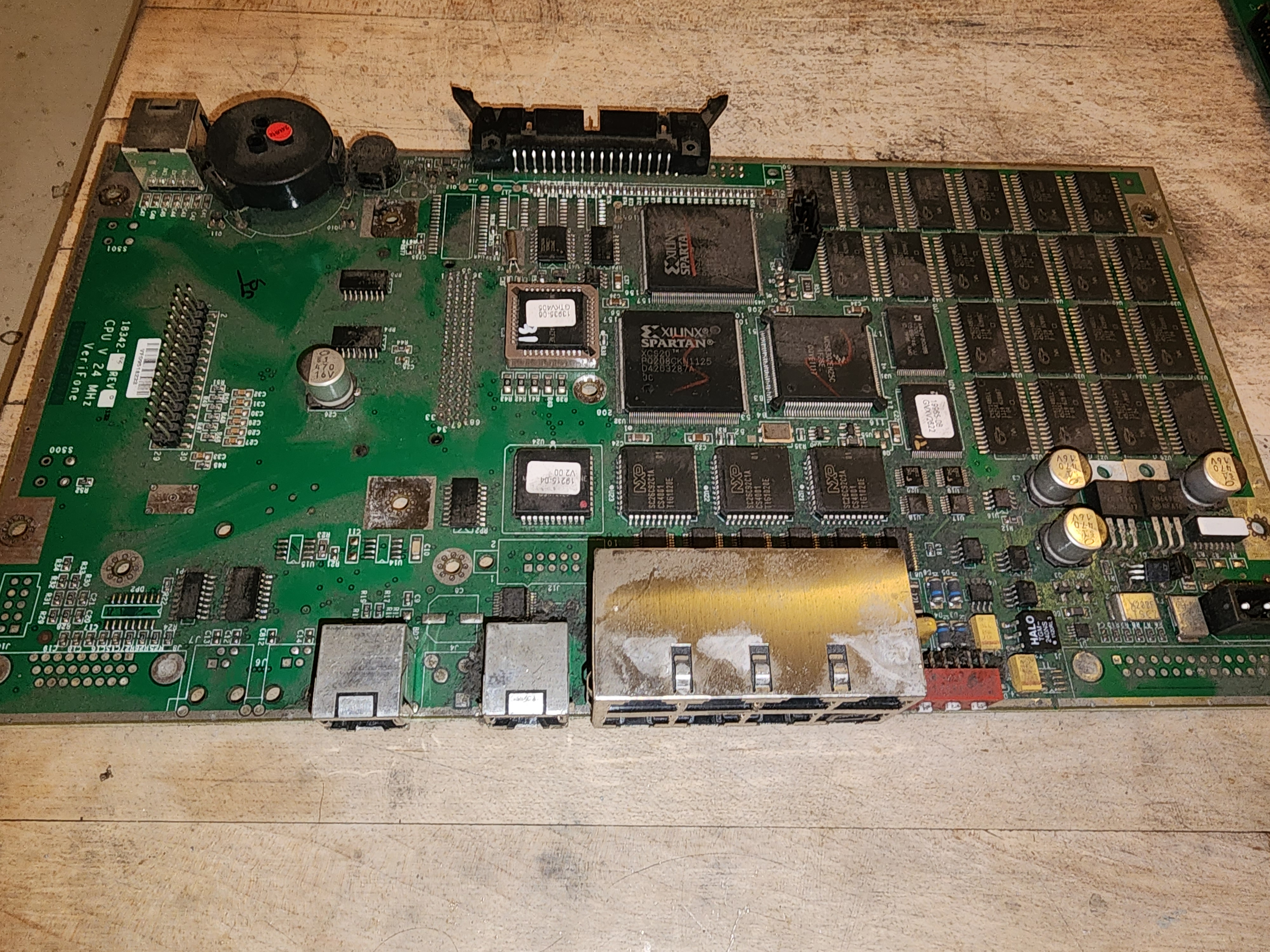

File comment: Green board front. High telecom?
20250722_024104.jpg [ 3.11 MiB | Viewed 1154 times ]
|

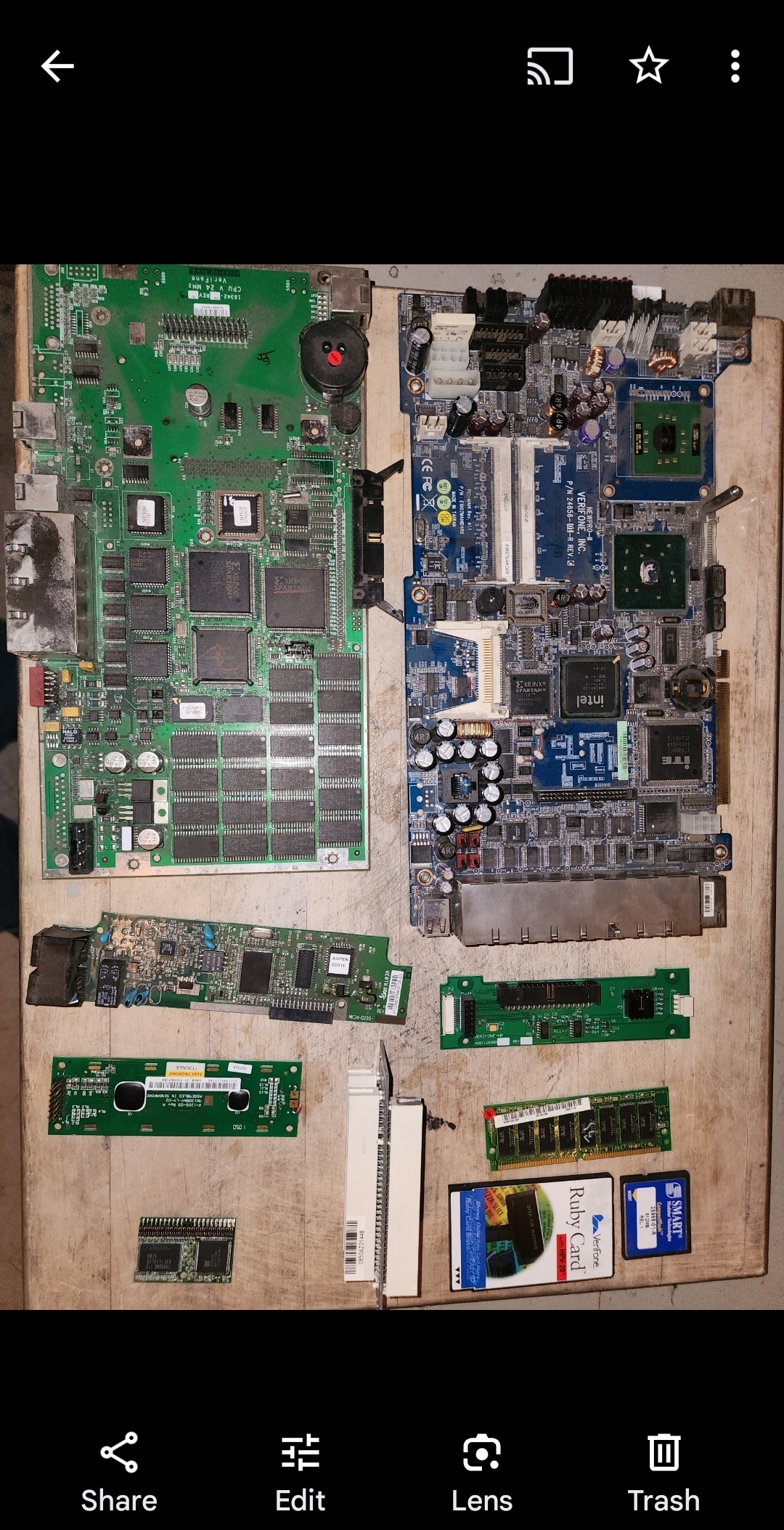

File comment: All the boards from inside
Screenshot_20250722_025319_Photos.jpg [ 1.42 MiB | Viewed 1154 times ]
|
20250722_015724.jpg [ 2.08 MiB | Viewed 1154 times ]
|
20250722_015627.jpg [ 3.41 MiB | Viewed 1154 times ]
|
