dolfinwriter
PostPosted: Tue Sep 05, 2023 11:11 pm

Joined: Thu Feb 13, 2020 7:37 am
Posts: 74
Location: Flatlands of Kansas
Just a couple more...

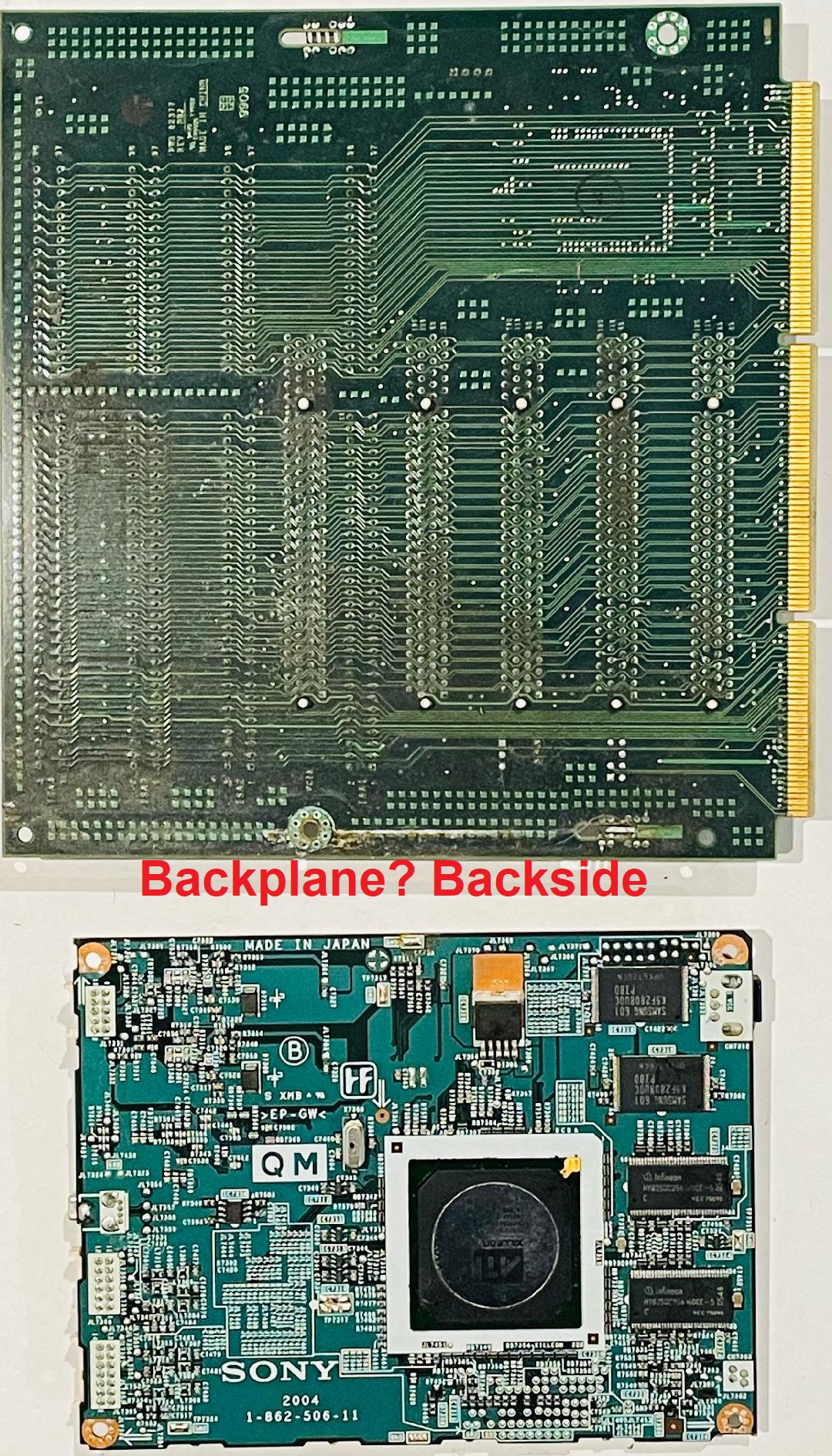

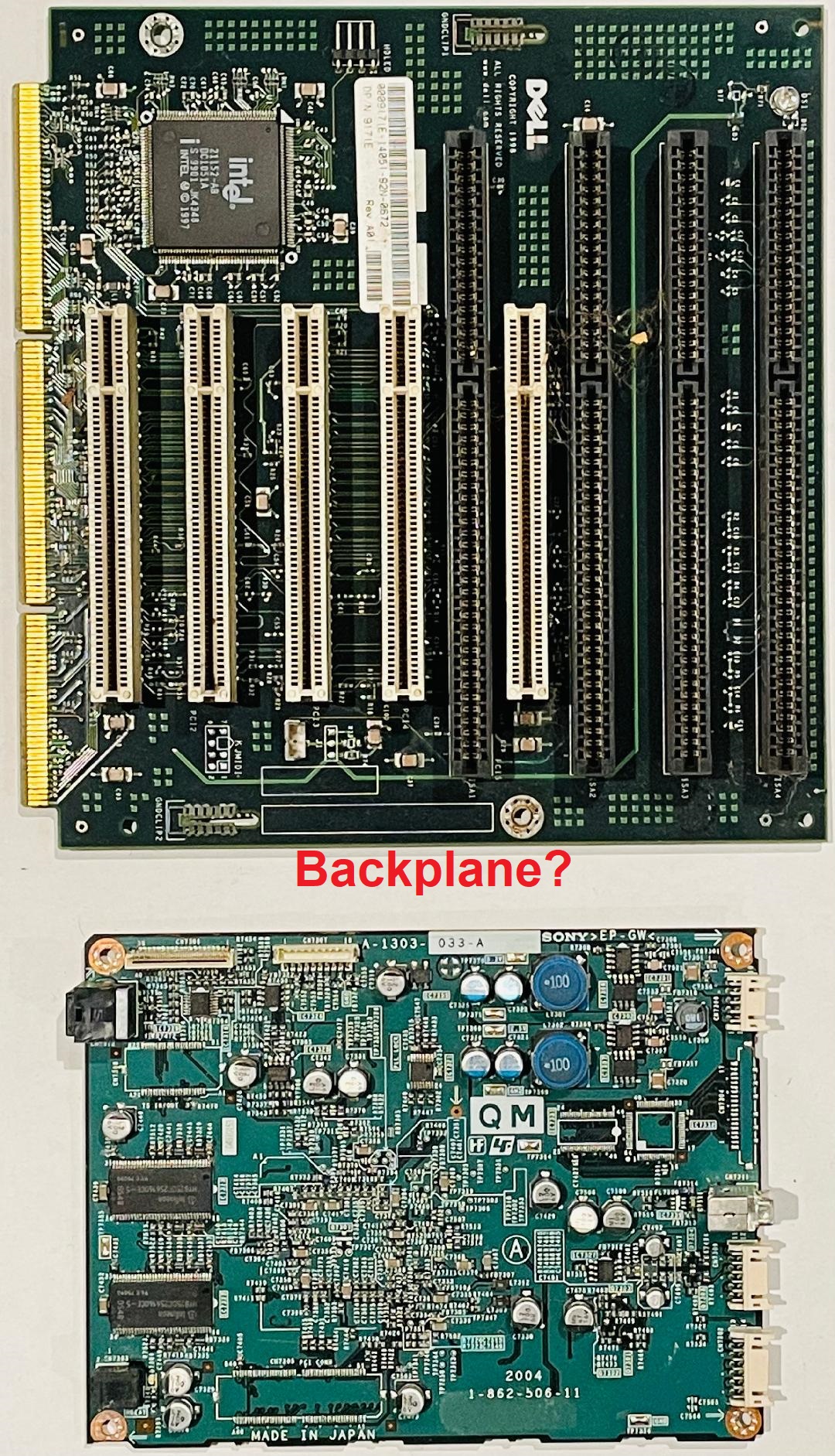

Top board backplane?

Bottom board?

How are typical home WiFi/Router boards graded?

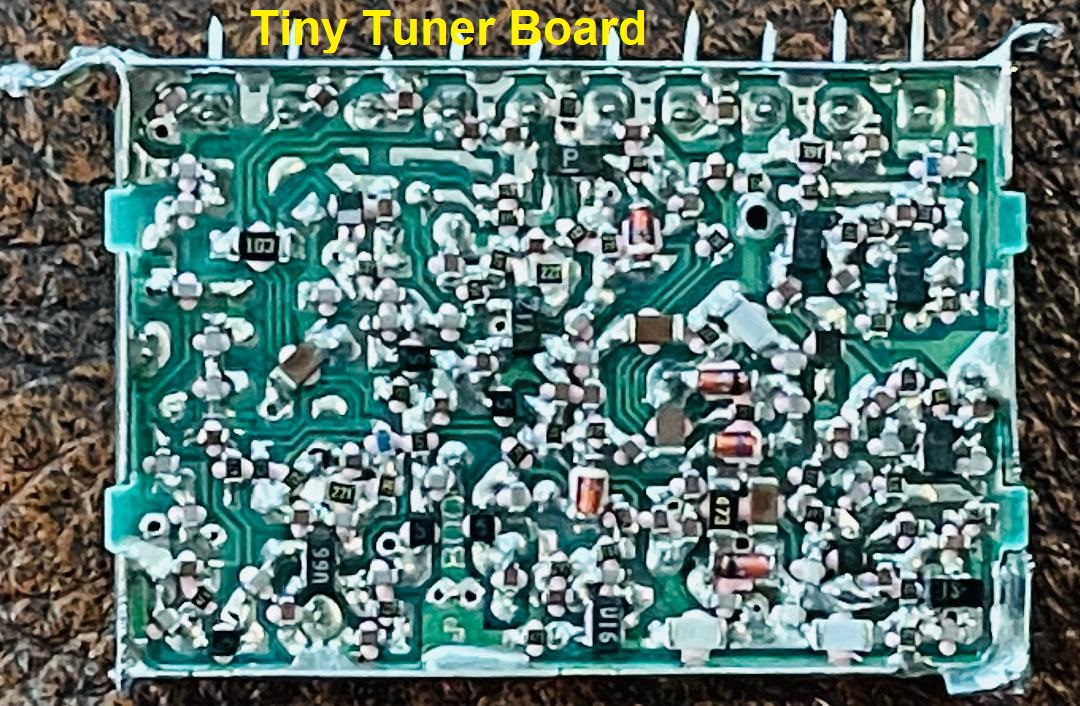

What about these tiny tuner boards with a hundred tiny components?


Attachments:
Tiny Tuner Board.jpg
Tiny Tuner Board.jpg [ 341.65 KiB | Viewed 1050 times ]
5A.jpg [ 953.19 KiB | Viewed 1050 times ]
5B.jpg [ 970.19 KiB | Viewed 1050 times ]
Top
 Profile

602bridgeway
PostPosted: Thu Sep 07, 2023 3:50 pm

Joined: Mon Apr 14, 2014 12:41 pm
Posts: 574
Tuner board is midgrade

Backplane will go for no bracket gold finger category as long the slots are gold plated

Last board is high grade peripheral
