Tadpole911
 Post subject: USB inputs and such
PostPosted: Tue Apr 29, 2014 7:58 pm

Joined: Wed Mar 12, 2014 5:29 pm
Posts: 52
Attachment:
Attachment:

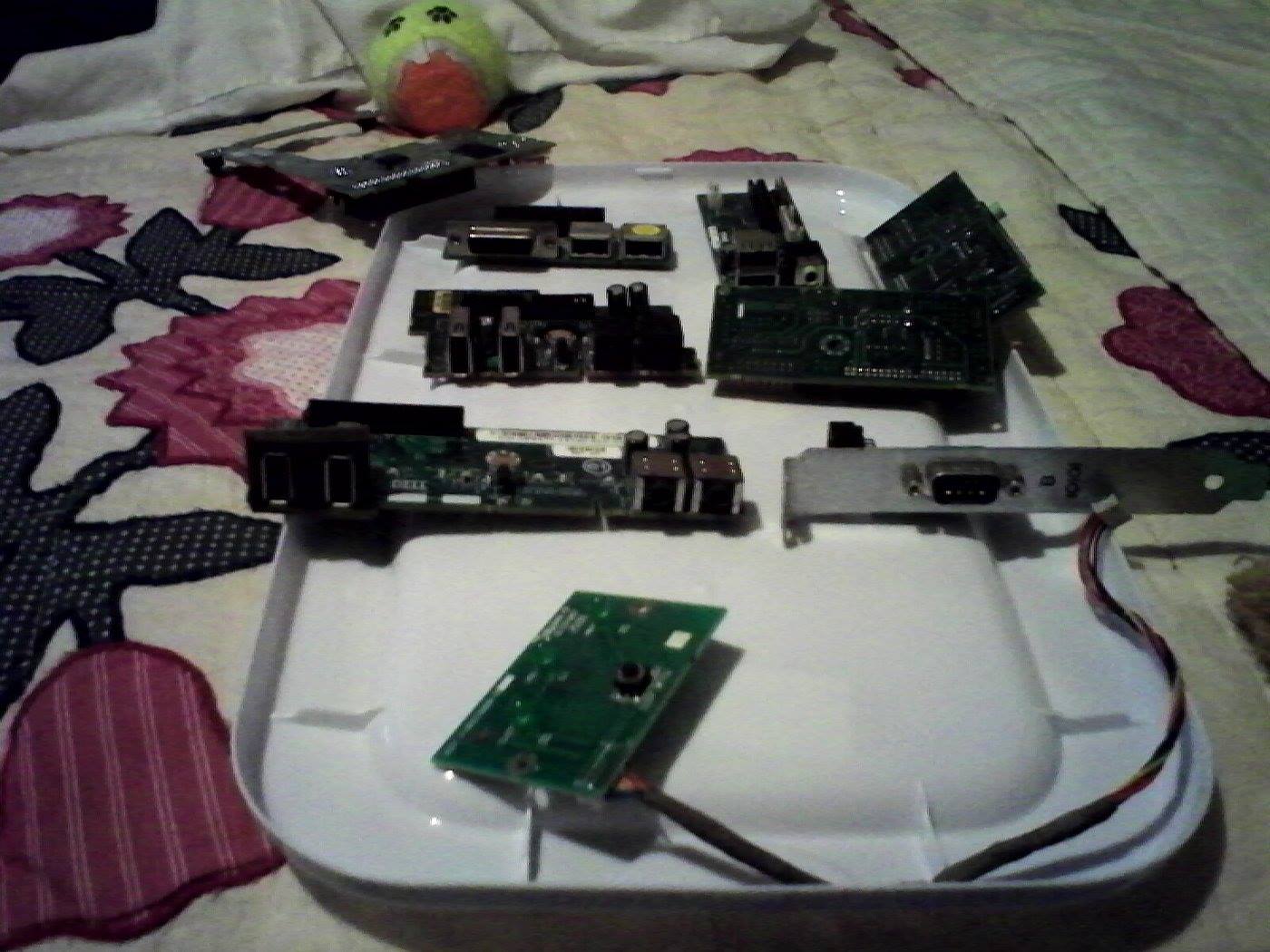

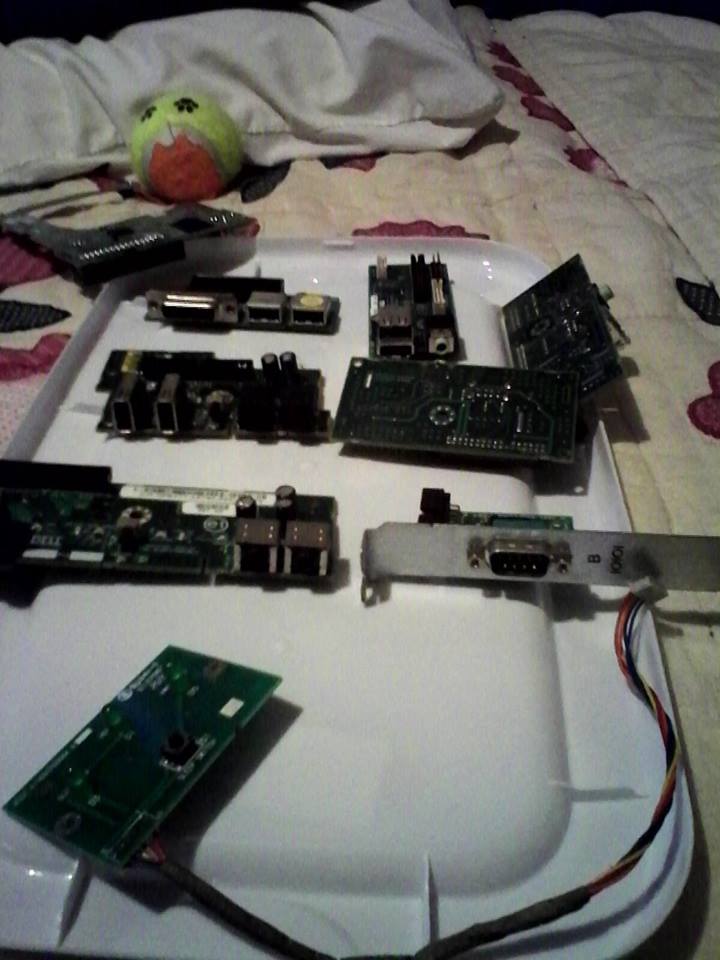

So these are green both sides... They are usb ports some have a audio on it as well.... Then there is a floppy in the top left also the one at the bottom with the wire is green both sides... I have tons of gold cards do i have to remove the metal piece?


You do not have the required permissions to view the files attached to this post.

Top
 Profile
Reply with quote
evilrick81
 Post subject: Re: USB inputs and such
PostPosted: Wed Apr 30, 2014 1:52 am
User avatar

Joined: Sat Mar 15, 2014 10:03 am
Posts: 326
i believe all those will be Peripheral..but the one with metal i believe that to be gold finger card i will need to see the top view to be sure.if it is a gold finger card you dont need to remove the metal...

also if the one with the wire {looks like a power switch}is Peripheral but remove the wire 1st...
Top
 Profile
Reply with quote
Boardsort
 Post subject: Re: USB inputs and such
PostPosted: Thu May 01, 2014 3:12 pm
Site Admin
User avatar

Joined: Thu Sep 05, 2013 2:28 pm
Posts: 375
All Peripheral. The one with the bracket unfortunately is not a Gold Finger Card. It is just a mounting point for the ports which would then have a cable running to the motherboard.
