BSOD
 Post subject: Peripherals?
PostPosted: Sun Apr 27, 2014 2:40 pm
User avatar

Joined: Fri Feb 14, 2014 10:57 pm
Posts: 95
Wondering if all of these can be added to peripherals.

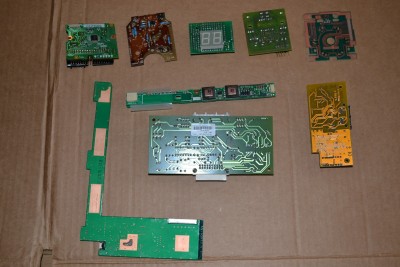

Smaller boards in first two photos are green/brown, but have noticeable gold contacts. The areas on the reverse of the larger L-shape board are copper.
The last photo shows both side of two identical boards.


You do not have the required permissions to view the files attached to this post.

Top
 Profile
Reply with quote
Boardsort
 Post subject: Re: Peripherals?
PostPosted: Mon Apr 28, 2014 1:40 pm
Site Admin
User avatar

Joined: Thu Sep 05, 2013 2:28 pm
Posts: 375

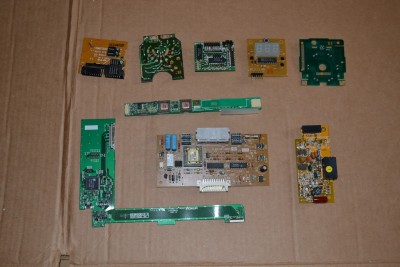

The top row, in order from left to right:

Midgrade, Midgrade, Peripheral, Midgrade, Peripheral.

The boards below the top row can all be Peripheral Grade IF you knock those transformers off.

Even those the large center board is brown on the topside, it has gold pins and an IC or two, so if you take off the transformer it will be Peripheral Grade.

Thanks for the look!
