 Post subject: Wire loop in keyboard?
PostPosted: Fri Sep 05, 2025 11:32 am

Joined: Sat Nov 29, 2014 9:44 pm
Posts: 1321
Location: I'm right here :D

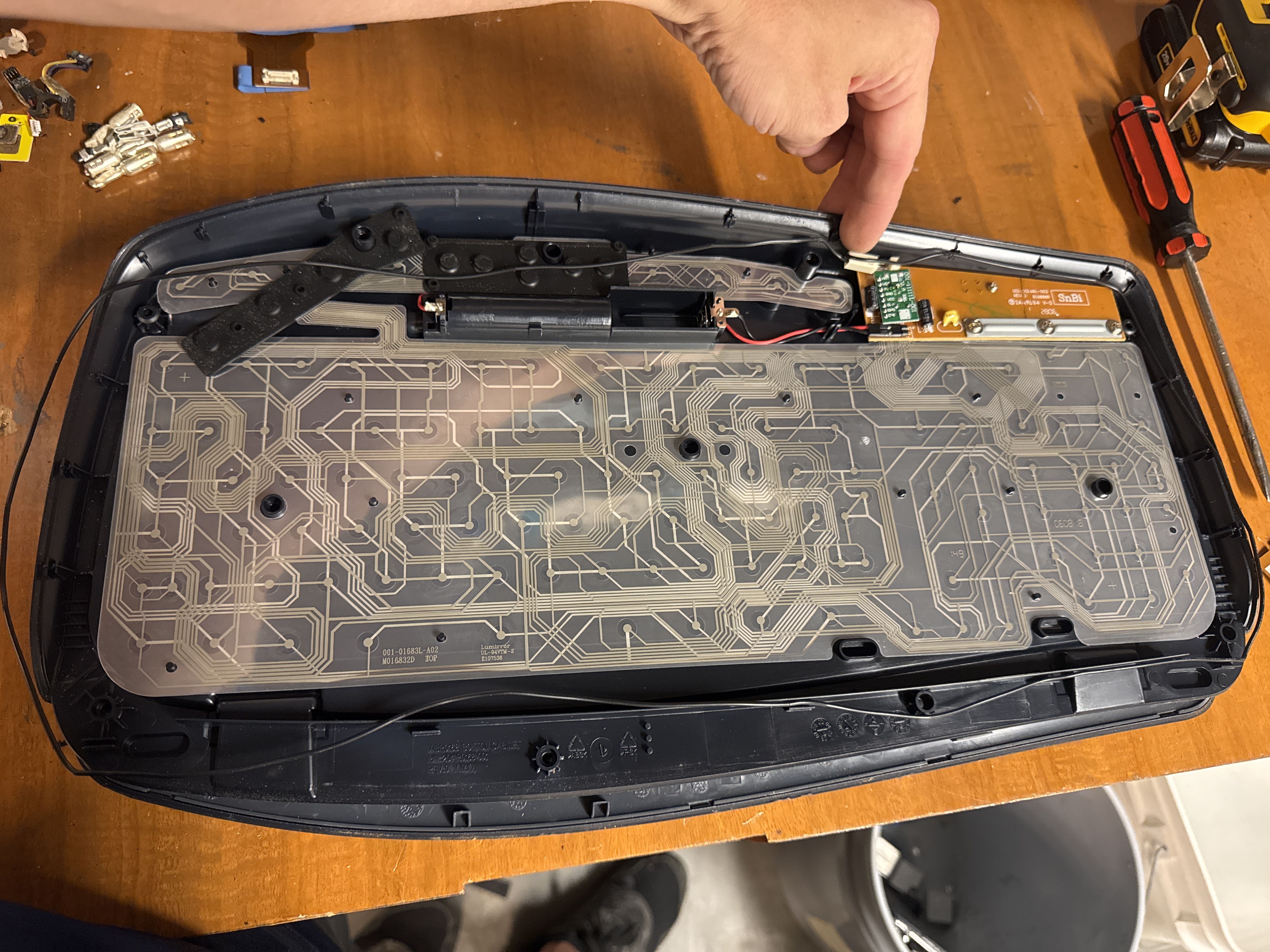

Kinda reminds me of a degaussing loop from a crt monitor. Connects to the main board and just loops around the housing.

What's that about?


Attachments:
image.jpg [ 3.11 MiB | Viewed 362 times ]

_________________
Here to learn more so I can recycle more
My grades are my own opinion and not an official grade from Boardsort
Top
 Profile

PostPosted: Fri Sep 05, 2025 3:03 pm
Site Admin
User avatar

Joined: Tue Feb 03, 2015 6:57 pm
Posts: 10041
Location: Low DOS
Depends on what it is.
Could be an antenna.
Could be for radio interference compliance. Or a number of other things.

_________________
42 6F 61 72 64 73 6F 72 74 2E 63 6F 6D


Top
 Profile

PostPosted: Fri Sep 05, 2025 5:36 pm
User avatar

Joined: Mon Apr 15, 2024 9:38 pm
Posts: 41
Google the keyboards Make and Model for the schematic diagram. Parts layout and parts list.
Hopefully. You can get a download or something. That coil should be labled on the schematic and/or mentioned in the parts lay out or parts list.
That should give you a clue to it's function.


Top
 Profile

PostPosted: Fri Sep 05, 2025 5:58 pm
User avatar

Joined: Mon Apr 15, 2024 9:38 pm
Posts: 41
As a side note. That coil could be for a FCC compliance for a quiet RF environment for the computer itself and surrounding devices.
Look for a tag on the keyboard stating what FCC regulation the keyboard fulfills.
But. Yeah. Sure reminds one of a degaussing coil on a CRT. Also a AM home antenna.
I did my share of replacing CRT's in my day.
That would be cool hooking that coil up to an AM radio. See how it performs.


Last edited by Catwhisker on Mon Sep 08, 2025 5:21 pm, edited 1 time in total.

Top
 Profile

PostPosted: Fri Sep 05, 2025 7:58 pm

Joined: Sat Nov 29, 2014 9:44 pm
Posts: 1321
Location: I'm right here :D
Too late to check any of that.
Whoops ¯\_ (ツ)_/¯

_________________
Here to learn more so I can recycle more
My grades are my own opinion and not an official grade from Boardsort


Top
 Profile

PostPosted: Fri Sep 05, 2025 8:57 pm
Site Admin
User avatar

Joined: Tue Feb 03, 2015 6:57 pm
Posts: 10041
Location: Low DOS
My best guess is compliance

2nd guess an early wireless keyboard.
Some like Microsoft had massive antennas.
That often were out of compliance lol

_________________
42 6F 61 72 64 73 6F 72 74 2E 63 6F 6D


Top
 Profile

PostPosted: Sat Sep 06, 2025 4:35 am
User avatar

Joined: Mon Apr 15, 2024 9:38 pm
Posts: 41
If curiosity "killed the cat." Wait! I better stop there.
After doing some further research on your question. Yes. I have the time to do this. I am retired. Of all the employment I had through the years in the electronic field. I never did home computers or main frame. So. I would like to know also.
LOL. ( After quite some time surfing the internet). The answer is right in your posted photo. Though part numbers on the plastic case and circuit boards are blurry.
One can see the battery case. The wiring reveals the answer. The battery powers the PCB. The PCB then is the low frequency transmitter. It's output feeds the coil which your question is about. All the right components are on PCB to be a primitive but effective transmitter. That keyboard most likely is early first run wireless keyboard engineering to satisfy customer demand. Wireless quickly evolved beyond that.
I totally 100% agree with lostinlodos. The 2nd guess.
It is an antenna for the wireless. Batteries drained quickly with that setup.
I got to hand it to the original owner of the keyboard. The battery holder doesn't show corrosion. So many individuals leave batteries in fine old antique equipment. Ruining them. Example. Old pocket transistor radios.
Ok. Enough said.


Top
 Profile

PostPosted: Sat Sep 06, 2025 8:38 am

Joined: Sat Nov 29, 2014 9:44 pm
Posts: 1321
Location: I'm right here :D
Interesting.


Another discovery I made while processing several keyboards...a lot of the wired ones cables, are steel wire. Figured it out by accident.

_________________
Here to learn more so I can recycle more
My grades are my own opinion and not an official grade from Boardsort


Top
 Profile

PostPosted: Thu Sep 11, 2025 2:07 pm
User avatar

Joined: Mon Apr 15, 2024 9:38 pm
Posts: 41
Later designs incorporated the antenna into the keyboard traces.
You will see long copper traces through the keyboard. Not connected to the keyboard matrix. Sometimes the antenna is on another PCB.
It was all a of matter of eliminating those antenna loops and solid antenna wires.
That has little to do with tear down e-scrap.
But. You did ask. What is this?
Electronic manufacturing moves so fast. The cell phone you bought today is outdated already. Personally. Reminds of the electronic handheld calculators in the 70's and on.
Always a better and cheaper design.
What an industry. Glad I got into it. This might be a bit of overkill on your question.
But. Knowledge is power.
