I normally don't take components apart but I got some large transistors, I believe are IGBT type, that I ended up taking apart out of curiosity.
The dies are attached to a big heatsink and some have silver colored wire connecting different dies. I saw a older post that seemed to indicate they could go in Peripheral grade (before the split).
So... Are these consistent enough to go in a specific grade if they're knocked off whatever board they were on? Can these be disassembled at all (I assume the dies are soldered on?) or is there even any benefit to doing so? Are the wires actually silver/silver plate?
Attachments: |

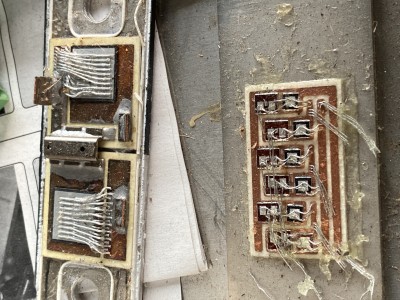

File comment: Couple more
image.jpg [ 2.65 MiB | Viewed 4545 times ]
|

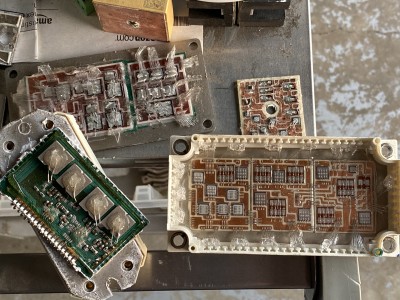

File comment: Several different transistors
image.jpg [ 2.64 MiB | Viewed 4545 times ]
|

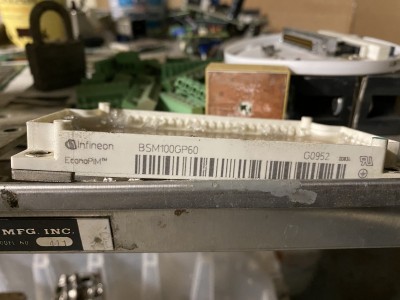

File comment: Infineon model info
E7641817-DCC3-453A-A7DF-81123565B6B7.jpeg [ 2.9 MiB | Viewed 4545 times ]
|

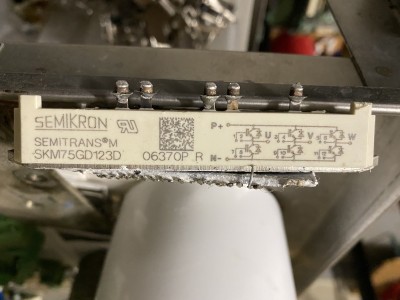

File comment: Semikron model info
32E2629B-1F89-435B-A135-128034F5D0F2.jpeg [ 2.92 MiB | Viewed 4545 times ]
|
